Description
Product Information

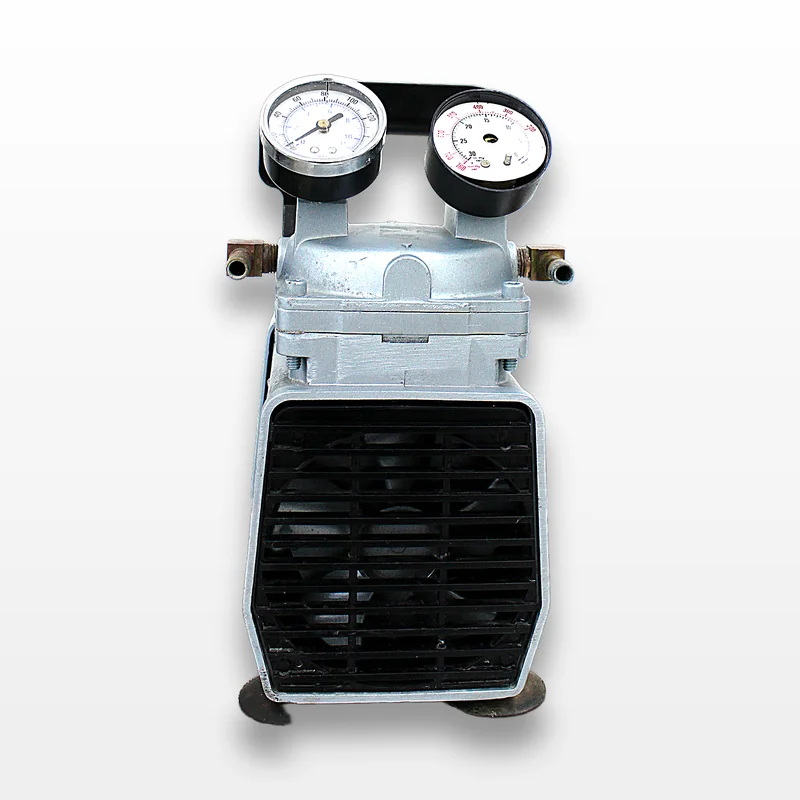

The Gast D0A-P704-AA Diaphragm Compressor Vacuum Pump is a reliable device designed to deliver consistent performance in medical and dental applications such as aspirators and suction units. This used pump is in very good condition, fully functional, but with minor cosmetic scratches from normal use. It operates continuously without oil or excess noise. Key specifications include a maximum continuous pressure of 60 psi, maximum flow rate of 1.9 cfm, and a maximum vacuum of 25.5 in Hg. It outputs 1/8 HP at a voltage of 115V with a frequency of 60Hz. The unit requires the pressure gauge to be replaced for optimal accuracy. Please review the images for a detailed cosmetic assessment.
Key Features
- Diaphragm compressor type
- Continuous operation without oil
- Ideal for medical and dental applications
- Quiet operation
- 115V voltage requirement
- Max pressure 60 psi
- Max vacuum 25.5 in Hg
Specifications
- Compressor Type: Diaphragm
- Current Rating: 4.2 A
- Frequency: 60Hz
- Inlet Size: 3/8 in
- Maximum Continuous Pressure: 60 psi
- Maximum Flow Rate: 1.9 cfm @ 0 psi
- Maximum Intermittent Pressure: 60 psi
- Maximum Operating Temperature: 104 F
- Maximum Speed: 1,575 rpm
- Maximum Vacuum: 25.5 in Hg
- Minimum Operating Temperature: 41 F
- Output Power: 1/8 hp
- Voltage: 115V
Weight
Imperial: 33.6 Pounds
Metric: 15.24 Kilograms
Shipping Dimensions
Imperial: 8.4 lb x 9.6 lb x 13.2 lb
Metric: 21.34 cm x 24.38 cm x 33.53 cm
Harmonized Code
841410
Harmonized Code Details
Harmonized Code 841410 covers vacuum pumps. This code is suitable for the Gast diaphragm vacuum pump given its function and application in facilitating air pressure and vacuum services.
