Description
Product Information

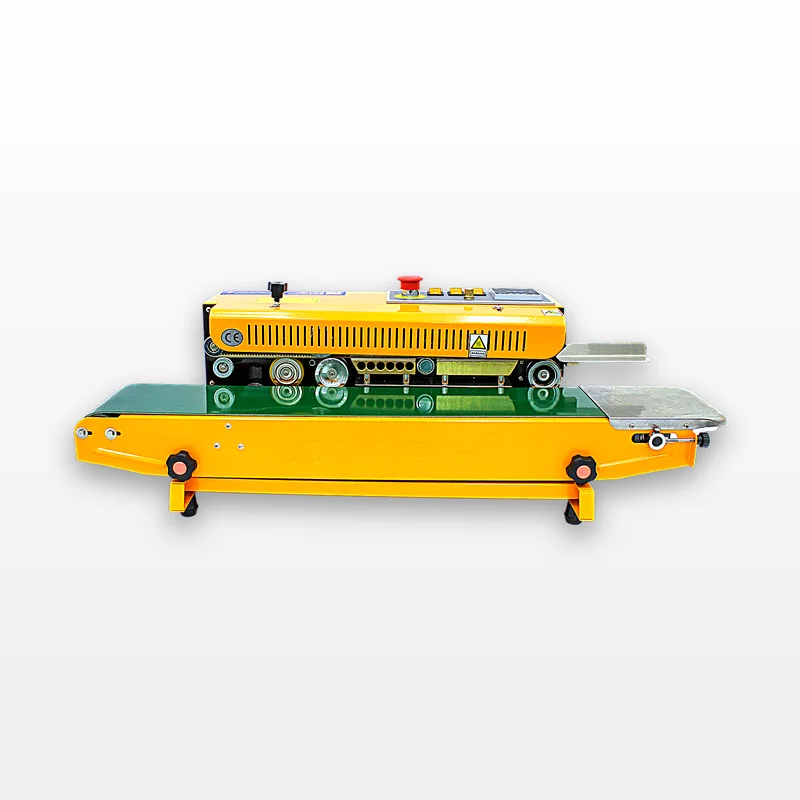

The JORESTECH E-CBS-630D Continuous Band Sealer is engineered to cater to versatile sealing demands, utilizing a digital temperature control panel for precise adjustments. Despite requiring minor repairs, this unit achieves the target temperature, though the band sealer is non-operational. The device efficiently seals a range of thermoplastic materials including Polyethylene (PE), Polypropylene (PP), and heat-sealable laminations, adaptable for both horizontal and vertical positions. This semi-automatic machine is suitable for sealing various bag types such as stand-up pouches, gusseted bags, and pillow-type bags. Built with a powerful motorized belt conveyor, the E-CBS-630D offers speeds up to 54 ft/min, ensuring professional, clean, and airtight seals. It supports PID digital temperature control ranging from 0 to 300C. This model is a robust, user-friendly solution for packaging needs across food, coffee, medicine, and more.
Key Features
- Digital temperature control panel
- Supports a wide range of thermoplastic materials
- Horizontal and vertical operations
- Motorized belt conveyor adjustable speed
- Seals multiple bag types
Specifications
- Operation: Semi-Automatic
- Power Type: Constant Heat
- Seal Head Orientation: Dual Fit System (Vertical & Horizontal)
- Seals: BOPP, PVC, PE, PU, Bo PET, Cello, Laminated bags
- Seal Width: 10 mm / 3/8 in
- Maximum Bag Sealing Speed: 54 ft/min (16 mt/min)
- Temperature Control Range: 0 – 300C (572F)
- Recommended Bag Height: 125 – 280 mm / 4.9 – 11 in
Weight
Imperial: 58.8 Pounds
Metric: 26.67 Kilograms
Shipping Dimensions
Imperial: 18.0 lb x 40.8 lb x 13.2 lb
Metric: 45.72 cm x 103.63 cm x 33.53 cm
Harmonized Code
842230
Harmonized Code Details
842230 – Machinery for filling, closing, sealing or capsuling bottles, cans, boxes, bags or other containers; Or Machinery for aerating beverages. This code is appropriate given the equipment’s function in sealing various packaging materials.
