Description
Product Information

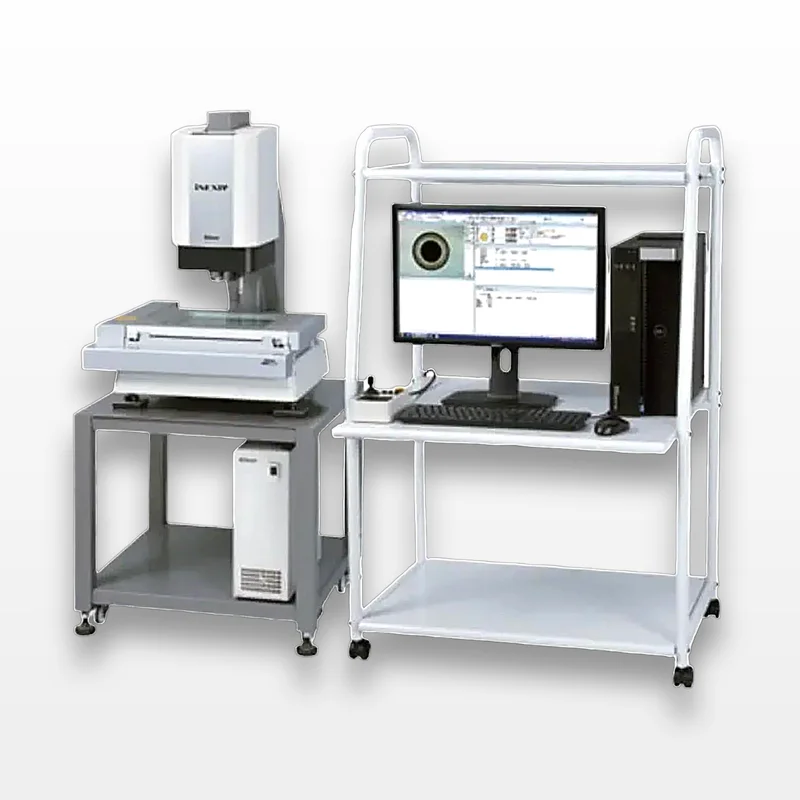

The Nikon VMA-2520 with PC & Table is a new multi-sensor measuring system designed for accurate and efficient measurement of 3D workpieces. This bench-top system provides high accuracy for industrial measuring, inspection, and quality control applications. Enhanced with imaging processing software and a 10x optical zoom system, it offers features suitable for surface analysis across a broad range of industries, including microelectronics and metal manufacturing. The system includes a PC for operation and offers both Vision and optional Laser Auto Focus capabilities. Its design incorporates a 73.5mm working distance, optimized for Z-axis measurements, and a durable construction with a footprint of 565 W x 690 D x 740mm H and a weight of 72 kg.
Key Features
- Multi-sensor measuring capability
- 10x optical zoom with Laser Auto Focus option
- Compact bench-top design suitable for factory settings
- High-accuracy for 3D workpieces
- Wide application including metal and plastic manufacturing
Specifications
- Stroke (X x Y x Z): 250 x 200 x 200 mm
- Minimum Readout: 0.1µm
- Maximum Workpiece Weight: 15kg (up to 5kg accuracy guaranteed)
- Camera: 1/3-in. 3CCD color
- Working Distance: 73.5mm
- Magnification: Optical 0.35 to 3.5x; On screen 12 to 120x
- Video Resolution: 640 x 480 pixels
- Operating System: Windows XP Pro SP2 or later
Weight
Imperial: 420.0 Pounds
Metric: 190.51 Kilograms
Shipping Dimensions
Imperial: 138.0 lb x 48.0 lb x 50.4 lb
Metric: 350.52 cm x 121.92 cm x 128.02 cm
Harmonized Code
903180
Harmonized Code Details
The code 903180 refers to measuring or checking instruments, appliances, and machines. It fits due to VMA-2520’s use as a sophisticated measuring and inspection device in various industrial applications.
