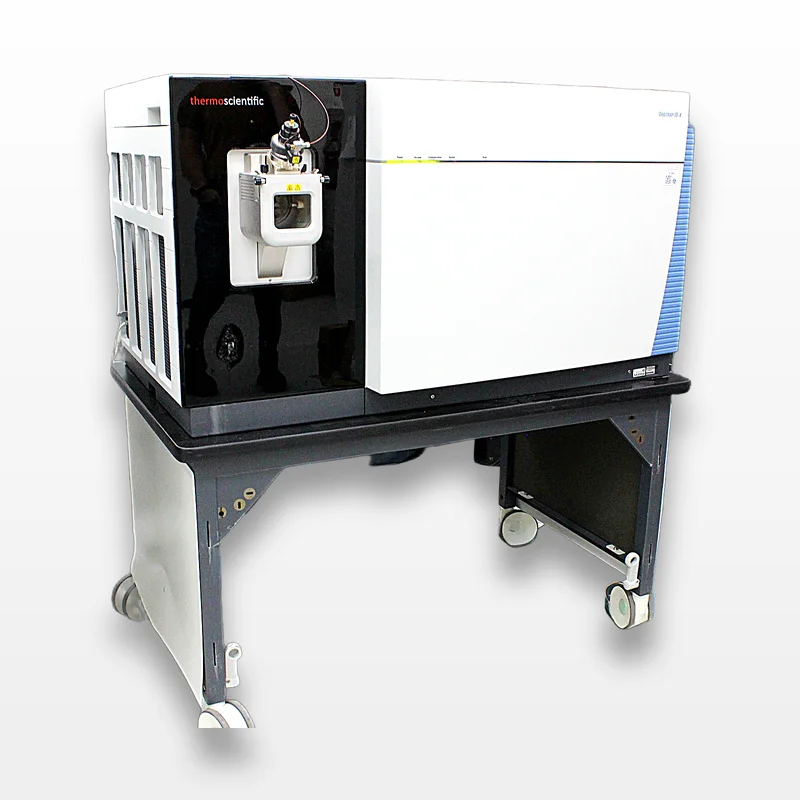

Thermo Orbitrap ID-X Tribrid Mass Spectrometer for Small Molecule Analysis

Description

Thermo Scientific Orbitrap ID-X Tribrid Mass Spectrometer system designed for advanced small molecule identification, characterization, and high-resolution accurate mass (HRAM) analysis. This platform combines quadrupole, Orbitrap, and ion trap technologies to deliver exceptional sensitivity, mass accuracy, and MSn fragmentation performance for demanding analytical workflows.

The Orbitrap ID-X features Thermo Scientific’s intelligent AcquireX automated acquisition workflow, enabling improved detection of low-abundance analytes in complex matrices through automated inclusion and exclusion list generation. The system supports advanced CID and HCD fragmentation workflows and provides high-confidence compound identification capabilities for pharmaceutical, metabolomics, proteomics, environmental, and research applications.

This system was recently powered on, tested, tuned, and calibrated by our service department. Core diagnostics, quadrupole calibration, detector gain calibration, and system communication checks have been successfully completed. The instrument reaches operating vacuum properly and demonstrates strong signal response throughout diagnostic testing.

System Information:

• Manufacturer: Thermo Scientific

• Model: Orbitrap ID-X Tribrid Mass Spectrometer

• Serial Number: FSN30013

• Software Version: 3.3.2782.34

Service / Diagnostic Highlights:

• Fully powers on and communicates properly

• Successfully reaches operating vacuum

• Quadrupole coarse mass calibration passed

• RF amplifier and control board diagnostics passed

• Detector gain calibration completed

• Stable signal observed across multiple acquisition modes

• TIC intensity and mass accuracy within acceptable ranges

• System tested in:

1. Normal
2. Rapid
3. Turbo
4. Enhanced
5. Zoom modes
6. • Diagnostic reports and spectra available upon request

Included:

• Thermo Scientific Orbitrap ID-X Mass Spectrometer

• Associated electronics and vacuum pumps

• Computer/workstation

• Software

• Cabling and accessories shown in photos

Key Features:

• Intelligent AcquireX automated workflow

• CID and HCD MSn fragmentation capabilities

• Quadrupole, Orbitrap, and ion trap mass analyzers

• Dual-pressure linear ion trap technology

• High-resolution accurate mass analysis

• Wide mass range: 50–2000 m/z

• Orbitrap resolution up to 1,000,000 FWHM

• Ion trap MSn acquisition rate up to 45 Hz

• Mass accuracy:

1. <3 ppm RMS external calibration
2. <1 ppm RMS internal calibration
3. • Dynamic range greater than 5,000 within a single acquisition

Physical Specifications:

• Weight:

1. 840 lbs
2. 381.02 kg

Shipping Dimensions:

• 38.4” x 62.4” x 68.4”

• 97.54 cm x 158.5 cm x 173.74 cm

Additional Information:

• Additional photos, spectra, and diagnostic reports available upon request

• Cosmetic wear consistent with normal prior laboratory use

• No major operational deficiencies observed during testing

Harmonized Code:

• 9027.80 — Instruments and apparatus for chemical analysis using spectrometers
