Description
Product Information

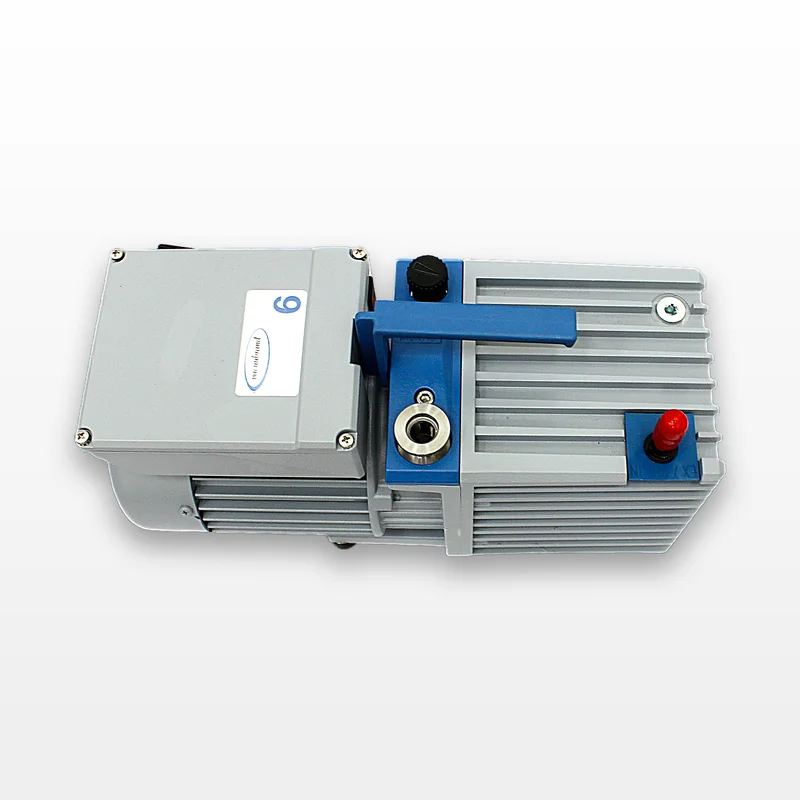

The Vacuubrand RE 6W Rotary Vane Vacuum Pump is a durable and efficient pump designed for a variety of laboratory and process applications. This used pump is in excellent condition, exhibiting minimal cosmetic blemishes due to prior use. Tested to specifications, it achieves a vacuum pressure of 5 microns. Its compact design and light weight make it easy to handle, while its ability to deliver high flow rates even at vacuum levels nearing the ultimate vacuum is impressive. With a versatile voltage range suitable for 120V and 220V and a frequency compatibility of 50Hz and 60Hz, this pump is ideal for applications such as degassing, lyophilization, and fine vacuum distillation. Additional features include high water vapor tolerance, vacuum-tight switch-off, and long intervals between oil changes due to its large oil volume.
Key Features
- Compact design and lightweight
- Achieves vacuum pressure of 5 microns
- High flow rates even at ultimate vacuum levels
- Tested for laboratory applications such as degassing and lyophilization
- Operates at 120V/220V and 50Hz/60Hz
- High water vapor tolerance and efficient gas ballast
Specifications
- Max. pumping speed: 5.7 m3/h (50 Hz), 4.0 cfm (60 Hz)
- Ultimate partial vacuum (abs.): 4 x 10-4 mbar
- Ultimate vacuum: 2 x 10-3 mbar / 1.5 x 10-3 torr
- Ultimate vacuum with gas ballast: 1 x 10-2 mbar / 0.75 x 10-2 torr
- Number of stages: 2
- Water vapor tolerance with gas ballast: 40 mbar
- Oil capacity (B-Oil): 0.34 – 0.65 l
- Inlet connection: Small flange KF DN 16 / hose nozzle DN 10 mm
- Outlet connection: Hose nozzle DN 8-10 mm
- Rated motor power: 0.3 kW
- Dimensions (L x W x H): 370 mm x 142 mm x 217 mm
- Weight: 16.9 kg
- Noise level: 50 dBA at 1500 rpm
Weight
Imperial: 42.0 Pounds
Metric: 19.05 Kilograms
Shipping Dimensions
Imperial: 18.0 lb x 7.2 lb x 12.0 lb
Metric: 45.72 cm x 18.29 cm x 30.48 cm
Harmonized Code
84141000
Harmonized Code Details
HS Code 84141000 covers vacuum pumps for industrial and laboratory use, suitable for equipment like the Vacuubrand RE 6W used in diverse scientific applications.
